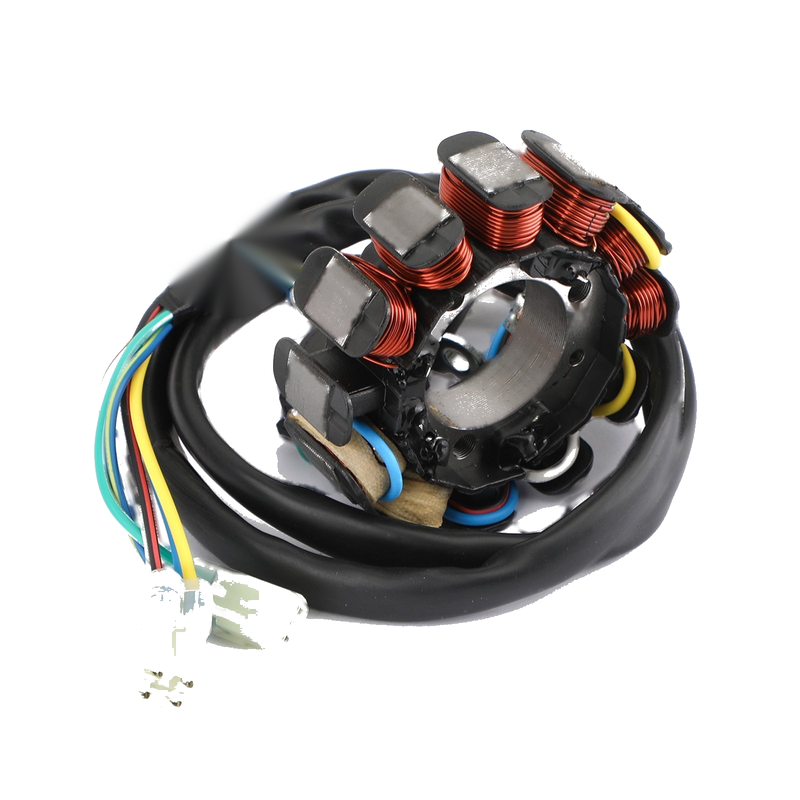

CRF450 CRF 450 X 31120-MEY-672 Generic 2005-2017 Honda Alternator Magneto Stator
NOW
$81.00
afterpay
Or 4 interest-free payments of
$20.25
In stock at 1 of our locations
🚛
Free NZ shipping
🔒
12 month warranty on all parts
✅
NZ WOF compliant
🔧
Fitting available NZ wide
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifics:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 31.7mm / 1.25 inches
Exterior diameter : 77mm / 3.04 inches
Pole's Thickness : 24.7mm / 0.97 inches
Pole's Width : 13.5mm / 0.53 inches
Other specifications :
Number of wires: 6
Number of pins: 6
Number of plugs: 2
Number of fixation holes: 3
Number of poles: 12
PART NUMBER(S):
31120-MEY-672
Fitment:
For Honda CRF450 CRF450X 2005-2009/2012-2017
Package:
1x Generator Stator Coil
Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Delivery Time: 2-6 working days
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Specifics:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Interior diameter : 31.7mm / 1.25 inches
Exterior diameter : 77mm / 3.04 inches
Pole's Thickness : 24.7mm / 0.97 inches
Pole's Width : 13.5mm / 0.53 inches
Other specifications :
Number of wires: 6
Number of pins: 6
Number of plugs: 2
Number of fixation holes: 3
Number of poles: 12
PART NUMBER(S):
31120-MEY-672
Fitment:
For Honda CRF450 CRF450X 2005-2009/2012-2017
Package:
1x Generator Stator Coil
Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Delivery Time: 2-6 working days
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
