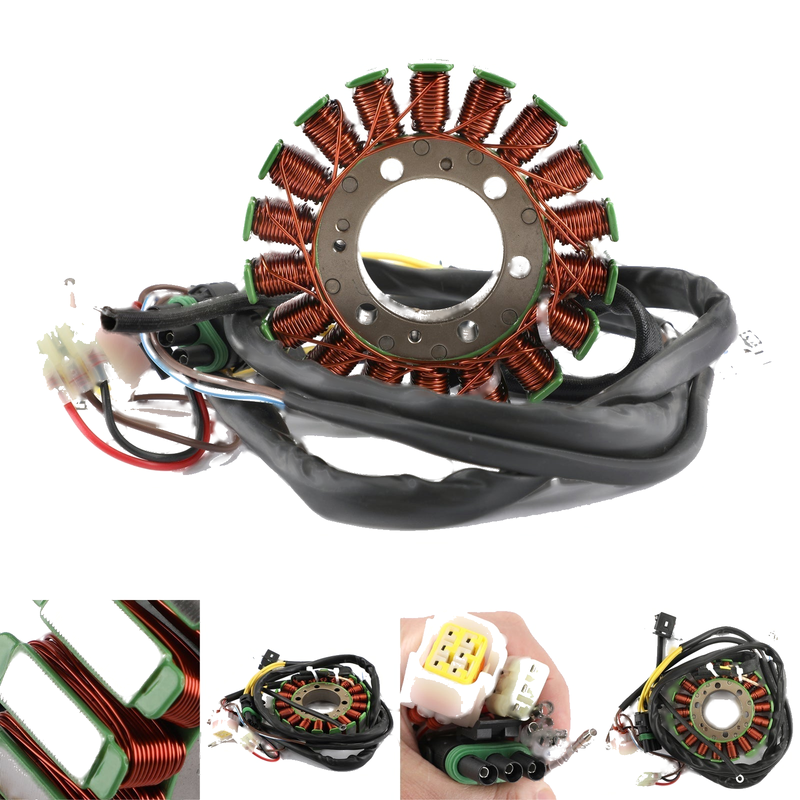

Polaris Sportsman Ranger 400 500 08-14 #.3090061 Generic Alternator Stator Coil
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:3090061
Dimensions :
Interior diameter : 41mm / 1.63"
Exterior diameter : 107mm / 4.22"
Thickness : 13mm / 0.51"
Other specifications :
Number of wires: 7
Number of pins: 16
Number of plugs: 3(+4)
Number of fixation holes: 5(+2)
FITMENT:
For Polaris Scrambler 500 2x4 Int'l 2009
For Polaris Scrambler 500 4x4 Int'l 2009
For Polaris Scrambler 500 4x4 2009
For Polaris Hawkeye 400 HO 2012-2014
For Polaris Sportsman 400 2008-2014
For Polaris Sportsman 500 HO EFI 2010
For Polaris Sportsman 500 Touring 2010-2013
For Polaris Sportsman 500 HO 2011-2012
For Polaris Sportsman 500 HO Forest 2012-2013
For Polaris Ranger 500 Carb 2009
For Polaris Ranger 400 Carb 2010-2014
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
