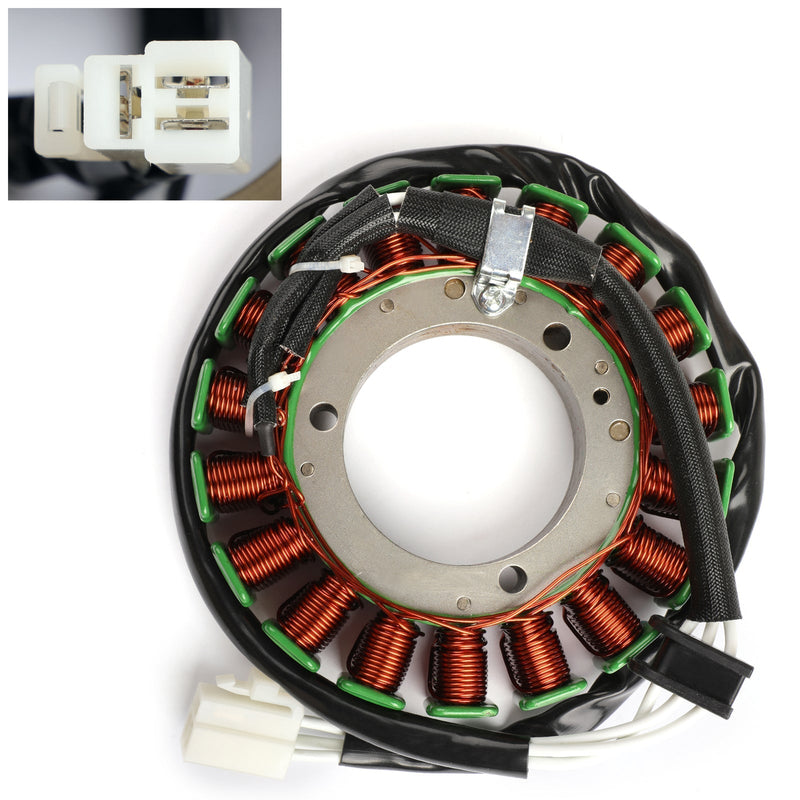

Yamaha XVZ1300 Royal Star Midnight Venture Tour 1996-2013 Generic Generator Stator Coil Alternator
NOW
$150.00
afterpay
Or 4 interest-free payments of
$37.50
In stock at 1 of our locations
🚛
Free NZ shipping
🔒
12 month warranty on all parts
✅
NZ WOF compliant
🔧
Fitting available NZ wide
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 57mm / 2.23in
Exterior diameter : 130mm / 5.13in
Thickness : 13mm / 0.51in
Other Specifications :
Number of wires : 3
Number of pins : 3
Number of plug : 1
Number of fixation holes: 3
Replacement Part Number:
4XY-81410-00
4XY-81410-02
4NK-81410-00
Fitments:
For Yamaha XVZ1300A (Royal Star) 1996-2001
For Yamaha XVZ1300AT (Royal Star Tour Classic) 1996-2000
For Yamaha XVZ1300CT (Royal Star Midnight Tour Deluxe/ Royal Star Tour Deluxe S) 2006-2009
For Yamaha XVZ1300LT/ CT (Royal Star Tour Deluxe) 1997-2001/2005-2009
For Yamaha XVZ1300TF (Royal Star Midnight Venture/ Royal Star Venture S) 2000/2002-2013
For Yamaha XVZ1300TF (Royal Star Venture) 1999-2010
Package Includes:
1x Generator Stator Coil
Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Delivery Time:2-6 working days
Warranty:
Returns:Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online:Solve your installation and product problems
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 57mm / 2.23in
Exterior diameter : 130mm / 5.13in
Thickness : 13mm / 0.51in
Other Specifications :
Number of wires : 3
Number of pins : 3
Number of plug : 1
Number of fixation holes: 3
Replacement Part Number:
4XY-81410-00
4XY-81410-02
4NK-81410-00
Fitments:
For Yamaha XVZ1300A (Royal Star) 1996-2001
For Yamaha XVZ1300AT (Royal Star Tour Classic) 1996-2000
For Yamaha XVZ1300CT (Royal Star Midnight Tour Deluxe/ Royal Star Tour Deluxe S) 2006-2009
For Yamaha XVZ1300LT/ CT (Royal Star Tour Deluxe) 1997-2001/2005-2009
For Yamaha XVZ1300TF (Royal Star Midnight Venture/ Royal Star Venture S) 2000/2002-2013
For Yamaha XVZ1300TF (Royal Star Venture) 1999-2010
1x Generator Stator Coil
Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Delivery Time:2-6 working days
Warranty:
Returns:Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online:Solve your installation and product problems
