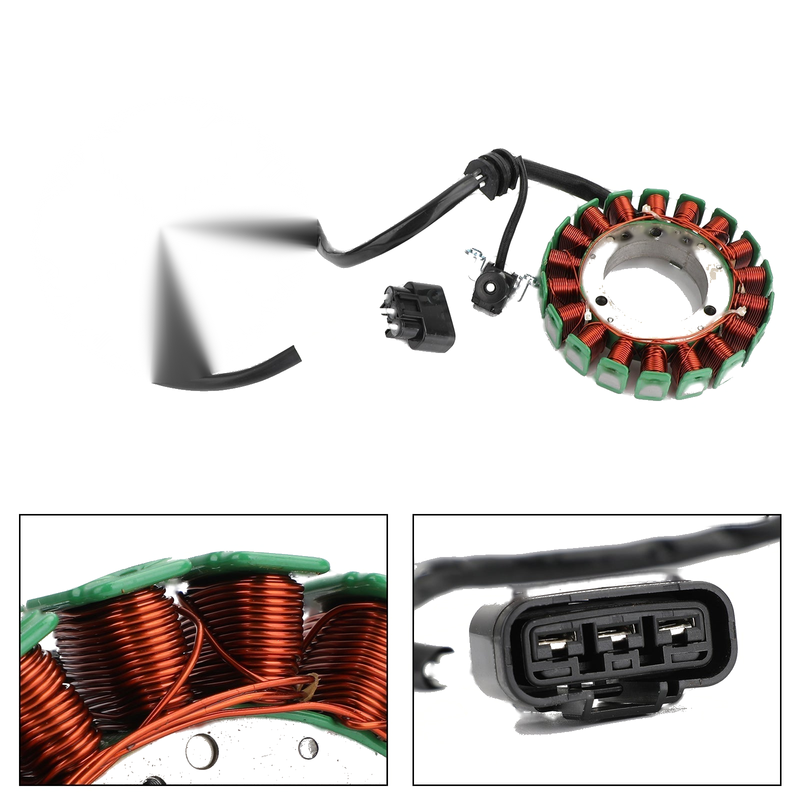

Yamaha XVS1300 V-Star / Midnight Star 10-17 3D8-81410-10 Generic Generator Stator
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 3D8-81410-10, 3D8-81410-20
Dimensions :
Interior diameter : 58mm/2.28"
Exterior diameter : 129.3mm/5.09"
Pole's Thickness : 29.5mm/1.16"
Pole's Width : 17.5mm/0.68"
Other specifications :
Number of wires: 5
Number of pins: 5
Number of fixation holes: 3(+1)
Number of poles: 18
FITMENT:
For Yamaha XVS1300CU XVS1300 Custom 2014-2016
For Yamaha XVS1300A Midnight Star 2010-2014/2016
For Yamaha XVS1300A V-Star 2011-2015
For Yamaha XVS1300A V-Star Classic 2010-2014
For Yamaha XVS1300CT V-Star Tourer 2010-2017
For Yamaha XVS1300 V-Star Deluxe 2013-2017
For Yamaha XVS1300CU Stryker 2011-2017
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Magneto Generator Engine Stator Coil For Yamaha XVS1300 Midnight Star / V-Star 2010-2017
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
