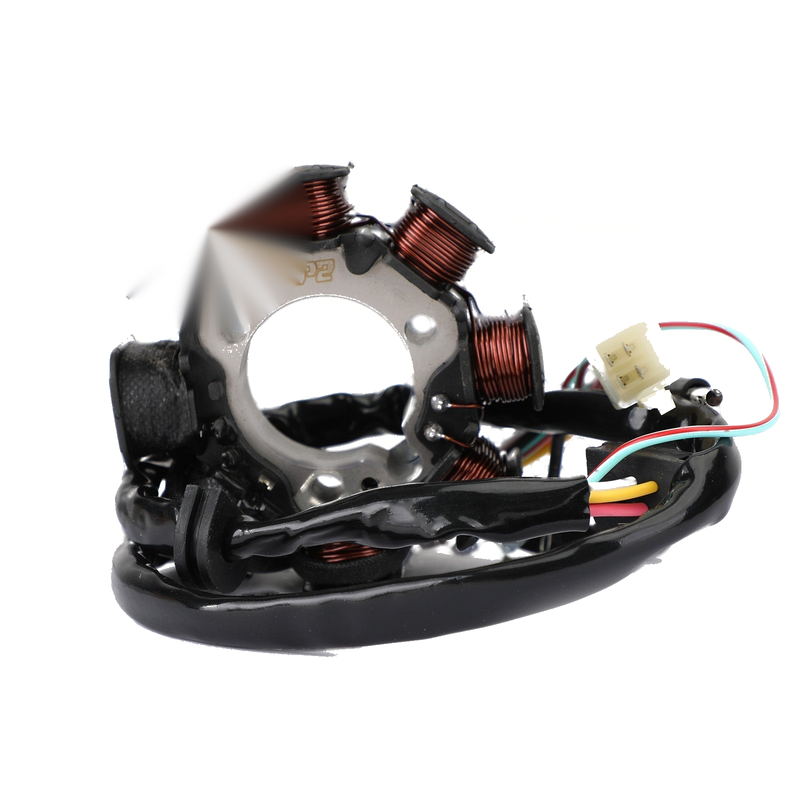

Honda XL250R XL250 250R 250 A AC 1985 1986 1987 Generic Stator Alternator Fit
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Specifics:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 34mm
Exterior diameter : 88mm
Pole's Thickness : 35.8mm
Pole's Width : 24.8mm
Other Specifications :
Number of wires: 5
Number of pins: 5(+1)
Number of plugs: 2
Number of fixation holes: 3
Number of poles: 8
Reference Part Number:
31120-KL4-771
31120-KL4-772
31120-KR6-004
31120-KR6-415
Fitments:
Fit for Honda XL250R A 1985-1987
Fit for Honda XL250R AC 1985-1987
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package includes:
1x Generator Stator Coil
Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
