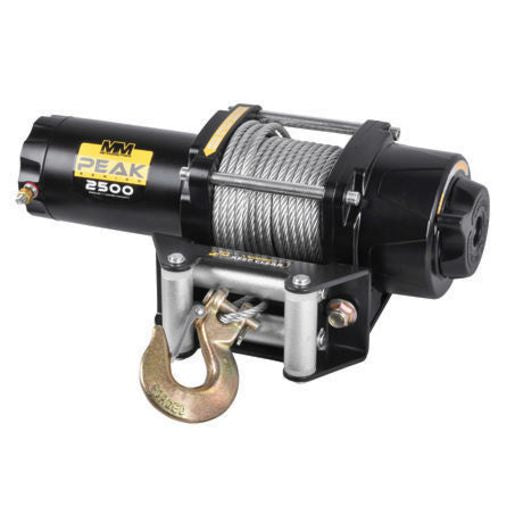

Mean Mother 4x4 Peak Electric Winch 2500lb EW2500
NOW
$908.00
afterpay
Or 4 interest-free payments of
$227.00
In stock at 1 of our locations
🚛
Free NZ shipping
🔒
12 month warranty on all parts
✅
NZ WOF compliant
🔧
Fitting available NZ wide
Mean Mother ATV winches have been designed to be compact and light weight and are ideal for most ATV/UTV vehicles.
The 2500lb ATV Winch is supplied with a universal mounting plate for easy installation. It has more than enough power to recover ATV/UTV vehicles from most situations. When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).
Features:
General Information:
Performance of 1st Layer:
Line Pull & Cable Capacity by Layer:
What's Included:
The 2500lb ATV Winch is supplied with a universal mounting plate for easy installation. It has more than enough power to recover ATV/UTV vehicles from most situations. When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).
Features:
- Forward and reverse operation with Free spool function
- Two Stage Planetary quality components Sintered Steel Bushes & Hardened Steel Gears
- Waterproof contactor (solenoid) system. Permanently mounts to ATV.
- Waterproof quality plug with protective cap.
- Mountable handle bar Forward and reverse toggle switch.
- Thimble in cable eyelet provides reinforcement and maximum strength.
- 4.76mm x 12m (2500lb) 7-19 Construction galvanised aircraft cable.
General Information:
- Specifications 2500lb (1135kg)
- Voltage 12 Volt
- Gear Ratio 242:1
- Gear Tran 2 Stage Planetary
- Clutch Turn 90 by handle
- Motor Type Permanent magnet
- Motor 3 Hp, 2.2 Kw
- Control Handle bar mountable switch, 2.4m lead
- Braking Self stocking brake
- Drum Size 50mm x 80mm(2.5" x 3.15")
- Cable 4.76mm x 12m (3/16" x 39,) 7-19 Construction galvanised aircraft cable.
- Clevis Hook 1/4"
- Overall Dimensions 333.5mm x 116mm x 114mm (13.13" x 4.57" x 4.5")
- Net Weight 11.4kg (25lb)
- Mounting Bolt Pattern 124mm x 76mm (4.88" x 3")
- Battery Power Cables 2 x 2350mm x 10mm
- Motor Power Cables 1 x 600mm x 10mm & 1 x 450mm x 10mm
- Recommended Battery Minimum 650CCA
- Finish Powder Coating
Performance of 1st Layer:
- Line Pull Line Speed Motor Amp Draw Voltage
- 0 lbs 0 kgs 19.7 Fpm 6.0 Mpm 31 12 Volt
- 1000 lbs 454 kgs 18.4 Fpm 5.6 Mpm 105 12 Volt
- 2000 lbs 907 kgs 14.8 Fpm 4.5 Mpm 145 12 Volt
- 3500 lbs 1589kgs 13.5 Fpm 4.1 Mpm 195 12 Volt
Line Pull & Cable Capacity by Layer:
- Cable Layer Rated Line Pull Cable Capacity
- 1 2500 lbs 1135 kgs 9.2 Feet 2.8 Metres
- 2 2130 lbs 967 kgs 20.3 Feet 6.2 Metres
- 3 1855 lbs 842 kgs 33.1 Feet 10.1 Metres
- 4 1643 lbs 746 kgs 39.40 Feet 12.00 Metres
What's Included:
- Winch
- Winch mounting plate
- Solenoid (contactor)
- Handle bar switch with mounting bracket
- Power cable kit
- 4.76mm x 12m, 7-19 Construction galvanised aircraft cable.
- Roller Fairlead
- 1/4" Clevis Hook
- Hand Saver
- Hook Strap
- Detailed Instruction Manual
- Warranty registration Card
- Winch and Fairlead Mounting Hardware (Bolts, washer and Nuts)
