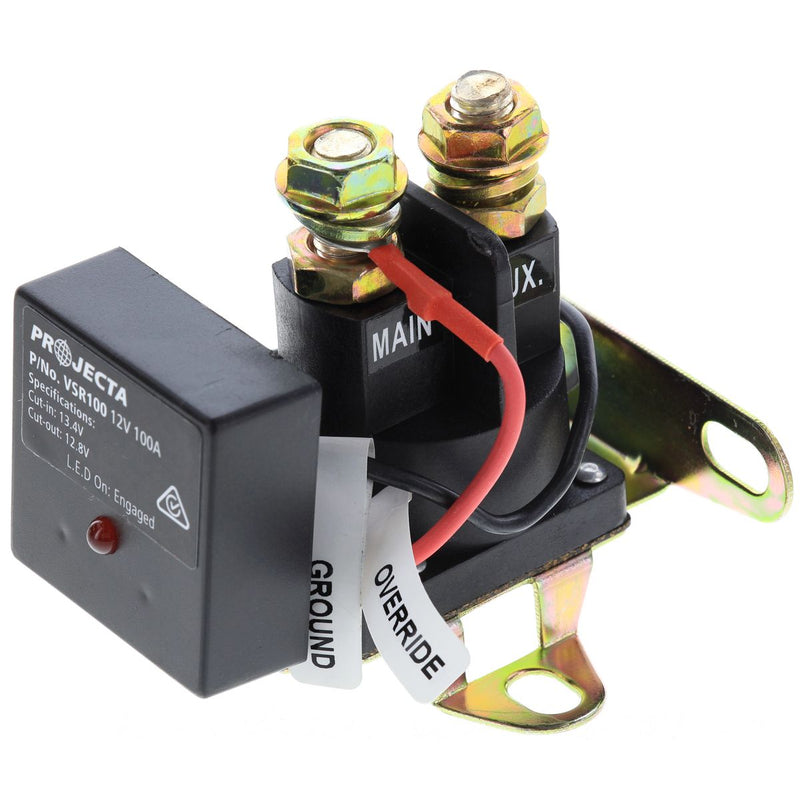

PROJECTA 12V 100A Voltage Sensitive Relay VSR100
NOW
$145.00
afterpay
Or 4 interest-free payments of
$36.25
In stock at 1 of our locations
🚛
Free NZ shipping
🔒
12 month warranty on all parts
✅
NZ WOF compliant
🔧
Fitting available NZ wide
Projecta's Voltage Sensitive Relay (VRs) are suitable for wide variety of 12V DC applications. VRs sense the input voltage and automatically connect/disconnect the appliance or circuit at the set voltages. The cut-out has an 8sec. delay preventing the relay from disconnecting during a momentary drop in voltage. Manual override is activated by connecting the override wire to 12V DC.This bypasses the automatic voltage sensor allowing the relay to be engaged below the set voltages.
Projecta's VRS units are ideal for dual battery set ups as they enable two batteries to be charged at the same time and then isolates the batteries from each other when the vehicle is turned off, ensuring your starting battery is always charged & ready togo.
SPECIFICATIONS
Voltage: 12V
Charging current: 100A Continuous, 200A Peak
Cut-in voltage: 13.4V
Cut-out voltage: 12.8V
Cut-out delay: 8 second
Charge type: Parallel
Control: MCU
Mounting: Surface/firewall
Current draw: Charging 550mA, Standing 10mA
Voltage drop: Nil
Surge protection: Built-in
Environmental protection: IP66
Recommended fuse: 150A
Minimum cable size: 16mm2
Torque settings: 3.75Lb/ft,5Nm
Projecta's VRS units are ideal for dual battery set ups as they enable two batteries to be charged at the same time and then isolates the batteries from each other when the vehicle is turned off, ensuring your starting battery is always charged & ready togo.
SPECIFICATIONS
Voltage: 12V
Charging current: 100A Continuous, 200A Peak
Cut-in voltage: 13.4V
Cut-out voltage: 12.8V
Cut-out delay: 8 second
Charge type: Parallel
Control: MCU
Mounting: Surface/firewall
Current draw: Charging 550mA, Standing 10mA
Voltage drop: Nil
Surge protection: Built-in
Environmental protection: IP66
Recommended fuse: 150A
Minimum cable size: 16mm2
Torque settings: 3.75Lb/ft,5Nm
