PROJECTA Battery Tray fits Mitsubishi Pajero 00-On HDBT200
NOW
$426.00
afterpay
Or 4 interest-free payments of
$106.50
In stock at 1 of our locations
🚛
Free NZ shipping
🔒
12 month warranty on all parts
✅
NZ WOF compliant
🔧
Fitting available NZ wide
Battery Tray for Auto/Manual Pajero NM-NW, 4M41 DID 3.2 Litre & 6G74 3.5 Litre V6 Petrol (2000>)
Custom-made for the Mitsubishi Pajero, the HDBT200 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!

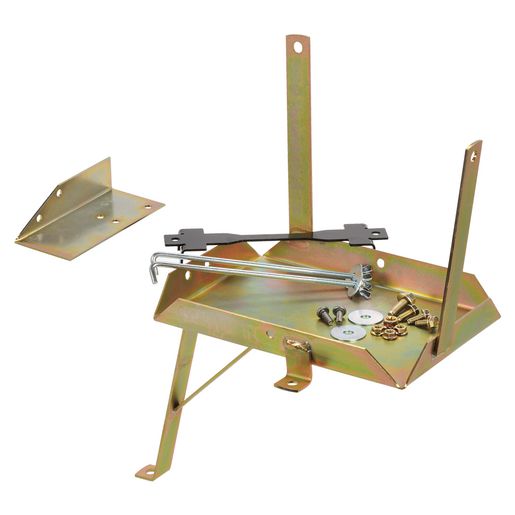

KIT INCLUDES
Tray
Universal Top Mount
Cruise ontrol Bracket
J Bolts
3 x M6 Bolt
3 x M6 Nut
2 x Body Washer
2 x Weld Bolt
1 x M8 Bolt Long
1 x M8 Nut
SPECIFICATIONS
Max Battery Size (mm) L265x W174 x H220
Max Battery Weight 18Kg
Recommended batteries Exide LCS 24-86 & Century NS70T
Approximate fitting time 2 hours
Special tools None required
Recommended Dual Battery System If NW P/n: IDC25
Other vehicles can fit IDC25, DBC150 or VSR200
Tray Location Engine Bay, Passenger Side near Fire Wall
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2. Early petrol models had a charcoal canister which will need to be moved to drivers side and lengthen vacuum hoses (not supplied).
3. Early petrol models will need cruise control relocated to battery with bracket and 2 x weld bolts & M6 nuts provided.
4. Bolt tray using 1 x M6 Bolt to firewall which is captive. 1 X M6 bolt with nut to drivers side of tray. 1 x M8 nut to stud at front of tray. 1 X M8 bolt and nut to inner guard with body washer. Will need to partially remove outer guard inner lining to get to bolt.
5. Fit the battery, J bolts and Universal top mount.
6. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System. Before closing the bonnet make sure the battery, tray and J bolts do not hit the bonnet.
Custom-made for the Mitsubishi Pajero, the HDBT200 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Universal Top Mount
Cruise ontrol Bracket
J Bolts
3 x M6 Bolt
3 x M6 Nut
2 x Body Washer
2 x Weld Bolt
1 x M8 Bolt Long
1 x M8 Nut
SPECIFICATIONS
Max Battery Size (mm) L265x W174 x H220
Max Battery Weight 18Kg
Recommended batteries Exide LCS 24-86 & Century NS70T
Approximate fitting time 2 hours
Special tools None required
Recommended Dual Battery System If NW P/n: IDC25
Other vehicles can fit IDC25, DBC150 or VSR200
Tray Location Engine Bay, Passenger Side near Fire Wall
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2. Early petrol models had a charcoal canister which will need to be moved to drivers side and lengthen vacuum hoses (not supplied).
3. Early petrol models will need cruise control relocated to battery with bracket and 2 x weld bolts & M6 nuts provided.
4. Bolt tray using 1 x M6 Bolt to firewall which is captive. 1 X M6 bolt with nut to drivers side of tray. 1 x M8 nut to stud at front of tray. 1 X M8 bolt and nut to inner guard with body washer. Will need to partially remove outer guard inner lining to get to bolt.
5. Fit the battery, J bolts and Universal top mount.
6. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System. Before closing the bonnet make sure the battery, tray and J bolts do not hit the bonnet.
