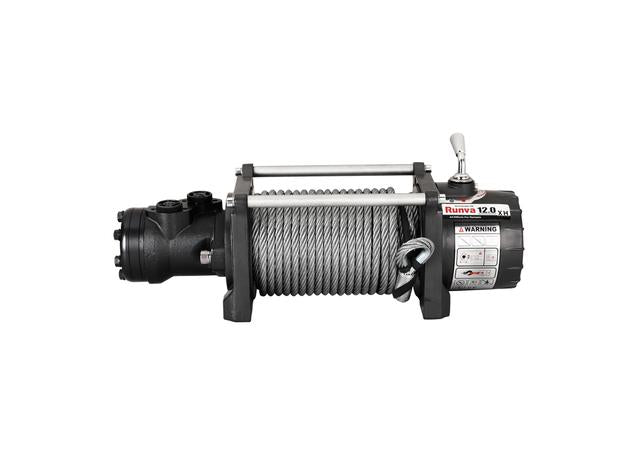

Runva HWX12000 4x4 Hydraulic Winch 12V 12000lb W/Steel Cable & Directional Control HWX1200012VS
NOW
$1,991.00
afterpay
Or 4 interest-free payments of
$497.75
In stock at 1 of our locations
🚛
Free NZ shipping
🔒
12 month warranty on all parts
✅
NZ WOF compliant
🔧
Fitting available NZ wide
The Runva HWX12000 is our smallest hydraulic winch option. Featuring 12,000lb of line pull from this compact and light design. The motor can run successfully on relatively low oil flow setups of between 15 - 45L/Min with 11Mpa of pressure. The gearbox is a patented two stage planetary setup with 28:1 gear ratio.
Winching is made easy via the handheld remote if the optional extra directional control valve is used (12v included, 24v sold seperately).
This model is ideal for a wide range of applications including light duty tow trucks, tippers, log splitter, recreational 4X4 and much more. If you intend to use it on a 4X4 without hydraulics already in place, we recommend speaking to a hydraulic specialist to see what would be required to make this work on your vehicle. (We do not recommend the use of a power steering pump as the oil flow is generally not sufficient). Being hydraulic, this winch has a very high duty cycle meaning it can work for a lot longer than electric models if set up correctly.
Specifications:
Winching is made easy via the handheld remote if the optional extra directional control valve is used (12v included, 24v sold seperately).
This model is ideal for a wide range of applications including light duty tow trucks, tippers, log splitter, recreational 4X4 and much more. If you intend to use it on a 4X4 without hydraulics already in place, we recommend speaking to a hydraulic specialist to see what would be required to make this work on your vehicle. (We do not recommend the use of a power steering pump as the oil flow is generally not sufficient). Being hydraulic, this winch has a very high duty cycle meaning it can work for a lot longer than electric models if set up correctly.
Specifications:
- Rated Line Pull: 12,000Lb (5,897Kg)Hydraulic
- Motor: Displacement65Ml/Roil Flow15-45L/Minpressure11Mpa
- Gear Train: Full Steel Two Stage Planetary
- Gear Ratio: 28:1
- Clutch Type: sliding Ring Gear
- Clutch Handle Position: Gearbox Can Be Rotated
- Brake: Automatic Load Holding Screw Cone
- Cable Type: steel Cable
- Cable Size: 10.2mm X 25.5M
- Drum Size: 63mm X 223mm
- Mounting Bolt Pattern: 254mm X 114.3mm
- Overall Dimensions: 550mm X 174mm X 217mm
- Finish: Grey Powder Coat
- Warranty: Limited 5 Year Motor And Lifetime Mechanical Warranty
